高效混合机

文章来源： 更新时间：2018-11-15

　　一、简介
　　高效混合机是由JQJ1-170剪切机、CIP-B30自吸泵和控制柜三部分组成，剪切机是利用定子、转子之间狭窄间隙中形成的紊流对物料进行高速、强烈的液力剪切、离心挤压、撞击和研磨来完成物料的连续分散、乳化及粉碎。定转子采用新型齿形组合。定子与转子均采用高强度不锈钢，表面并经过特殊硬化处理精密制造而成，电机采用电机直联形式，电机轴采用特殊不锈钢。

　　密封为机械密封。物料由料斗通过自吸泵输送到剪切机。本机总体结构简单、体积小、重量轻、耐磨性好、噪音低和运行平稳等优点、其特点是不用研磨介质，集分散、乳化、均质、破碎、输送为一体。
　　二、应用
　　本机适用于食品饮料、制药、颜料、染料、涂料、油水乳化、精细化工、石化等行业。（固体与液体）可轻松完成高粘度和含量高的悬浮液的分散和高效溶解。（液体与液体）油、水的乳化，细胞组织的破碎。（气体、液体、固体）吸收、溶解、萃取的混合、分散。同时具有一定的输送能力。
　　三、结构及特点
　　本系统不仅保持剪切机、自吸泵适用寿命长、能耗低、操作简单等特点。还具有整体设计合理、简捷、美观，融可靠性、实用性与高效性一体等优点，本机处理量大，适合工业化在线连续生产。
　　1、本机主要零件的材料采用不锈钢，具有耐腐蚀、无毒等特性。
　　2、无死角，物料100%通过分散剪切。
　　3、根据不同用途，可选用不同材料的定转子，拆卸方便。

　　. Introduction

　　Efficient mixer is, CIP-B30 priming pump and control cabinet consists of three parts JQJ1-170 shearing machine, shearing machine is the use of a stator, a rotor narrow gap formed between the turbulence of materials for high-speed, highly liquid shear force, centrifugal extrusion, impact dispersion and grinding the continuous material to complete the emulsification and crushing. Stator and rotor tooth using new combinations. Stator and rotor are made of high strength stainless steel, surface and specially hardened precision manufactured, motor with motor direct form, using a special stainless steel motor shaft. Mechanical seal for the seal. Material from the hopper conveyor to shear through self-priming pump. The machine is simple overall structure, small size, light weight, wear resistance, low noise and smooth operation, etc., its greatest feature is not grinding media, set the dispersion, emulsification, homogenization, crushing, conveying as a whole.

　　Second, the application

　　The machine is suitable for food and beverage, pharmaceutical, pigments, dyes, paints, oil-water emulsion, fine chemical, petrochemical and other industries. （Solid and liquid） can be easily and high content of high-viscosity dispersion and efficient suspension dissolved. （Liquid and liquid） oil and water emulsion, broken tissue. （Gas, liquid, solid） absorption, dissolution, the mixture was extracted dispersed. Also has a certain transmission capacity.

　　Third, the structure and characteristics

　　This system not only keeps shearing machine, pump for long life, low energy consumption, simple operation. Also has a reasonable overall design, simple, beautiful, financial reliability, practicality and efficiency advantages of integration, the machine processing capacity, suitable for industrial online continuous production.

　　1, the main parts of the machine made of stainless steel, corrosion resistant, non-toxic properties.

　　2, no dead ends, material 100% by dispersing shear.

　　3, depending on the purpose, the choice of the stator and rotor of different materials, easy removal

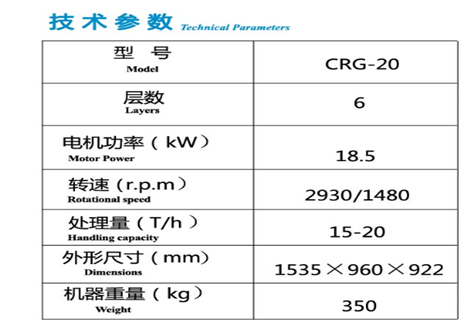

　　四、技术参数
